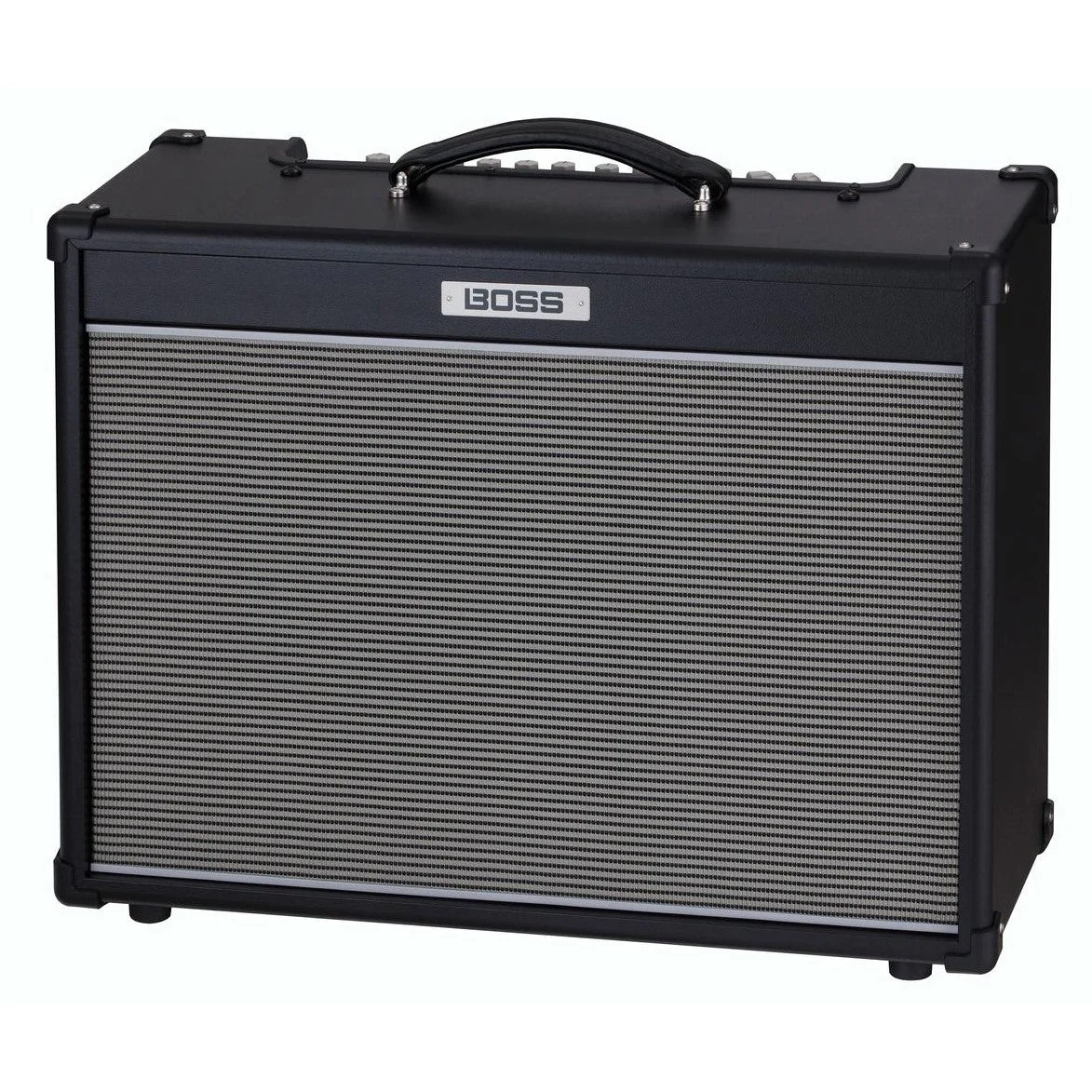

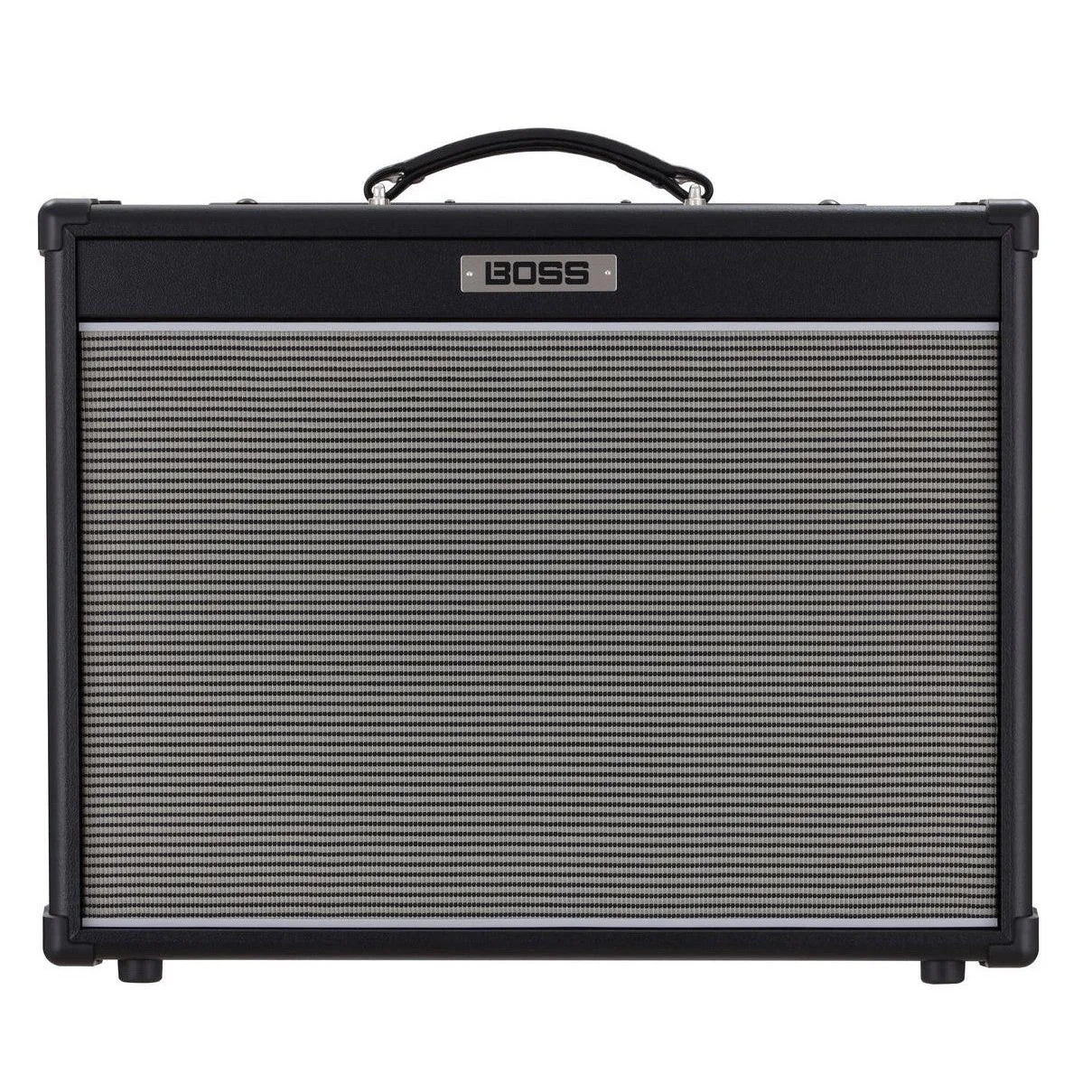

Boss - Nextone Artist 1x12 80w

Four Power Stages, Unlimited Expression

Combining classic tube sound and feel with next-generation tonal diversity, the BOSS Nextone series presents an exciting new concept in professional guitar amplification. Distinctive channel voicings deliver a wide range of inspiring tones, while four selectable Class AB analog power amp types provide instant access to the unique characteristics of 6V6, 6L6, EL84, and EL34 output tube sections. Backed by our advanced Tube Logic approach, each power amp type re-voices the entire circuit from input to output, putting the complete sonic experience of these signature power stages in one amp for the very first time.

Want to dive deeper with even more sound customization? Just connect to the Nextone Editor and become a virtual tech, fine-tuning bias, sag, EQ, and other internal settings to perfectly match your individual style and touch. Nextone also includes convenient modern features for stage playing, such as built-in effects, a line out for mic-free direct tone, and a power control for expressive cranked-amp sound at manageable volumes. And thanks to Tube Logic, you get to enjoy all the great sound and response of your favorite tube designs without the backbreaking weight and ongoing maintenance hassles.





Specifications
Rated Power Output

• 80 W

Nominal Input Level

• INPUT: -10 dBu (1 M ohm)
• RETURN IN: -10 dBu (100 k ohm)

Speaker

• 30 cm (12 inches) x 1

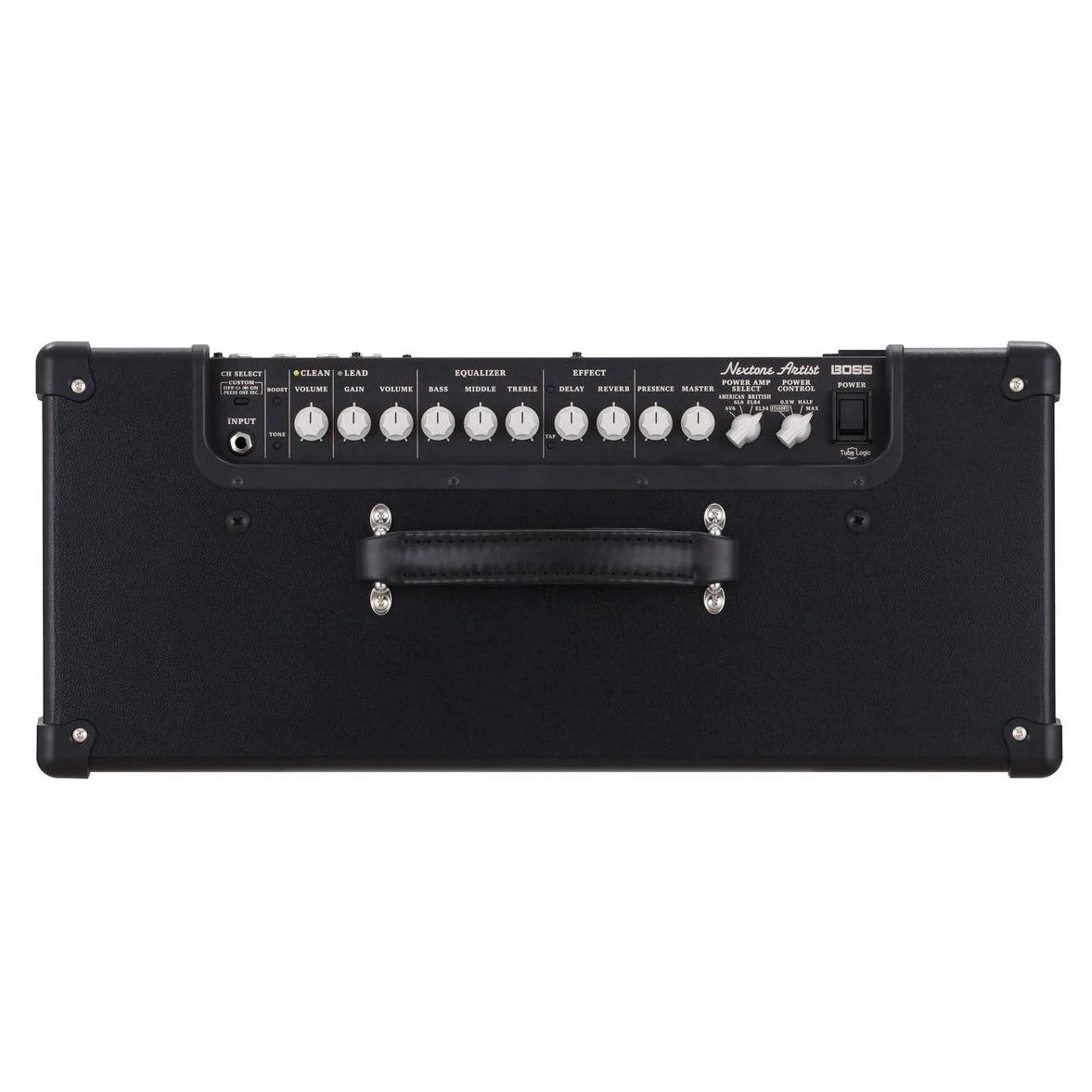

Controls

• CH SELECT button
• BOOST button
• TONE button

[CLEAN]

• VOLUME knob

[LEAD]

• GAIN Knob
• VOLUME knob

[EQUALIZER]

• BASS knob
• MIDDLE knob
• TREBLE knob

[EFFECT]

• DELAY button
• TAP button
• DELAY knob
• REVERB knob

PRESENCE knob
MASTER knob
POWER AMP SELECT switch (6V6, 6L6, EL84, EL34)
POWER CONTROL switch (STANDBY, 0.5 W, HALF, MAX)
POWER switch
Indicators
CLEAN
LEAD
CUSTOM MODE
BOOST
TONE
DELAY
TAP

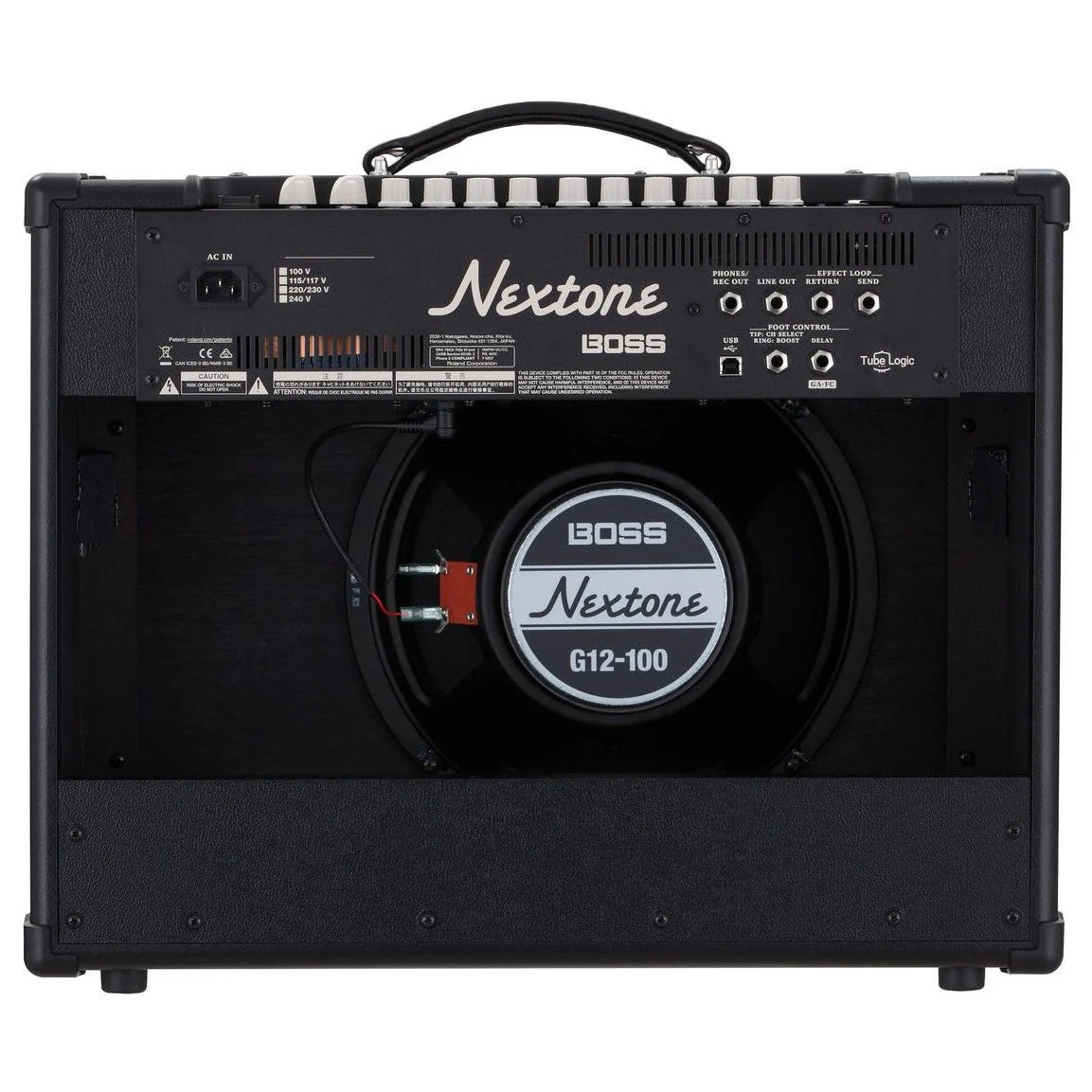

Connectors

• INPUT jack: 1/4-inch phone type
• REC OUT/PHONES jack: Stereo 1/4-inch phone type
• SEND jack: 1/4-inch phone type
• RETURN jack: 1/4-inch phone type
• LINE OUT jack: 1/4-inch phone type
• SPEAKER OUT 16 ohms A jack: 1/4-inch phone type
• SPEAKER OUT 16 ohms B jack: 1/4-inch phone type
• SPEAKER OUT 8 ohms jack: 1/4-inch phone type
• CH SELECT/BOOST jack: 1/4-inch TRS phone type
• DELAY/GA-FC jack: 1/4-inch TRS phone type
• USB port: USB B type
• AC IN jack

Power Consumption

• 77 W

Accessories

• Owner' s manual
• Power cord
• GA-FC sticker

Size and Weight

• Width 572 mm 22-9/16 inches
• Depth 248 mm 9-13/16 inches
• Height 475 mm 18-3/4 inches
• Weight 16.2 kg 35 lbs 12 oz



* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
