The Story
The Alpha·Omega 500 is a 500W amplifier equipped with an all-analog preamplifier, two distinct distortion circuits (Alpha and Omega), a custom-designed Darkglass high-efficiency class D Module, an ultra-quiet graphic equalizer, and a digital impulse-response cabinet emulator for DI outputs or headphones.

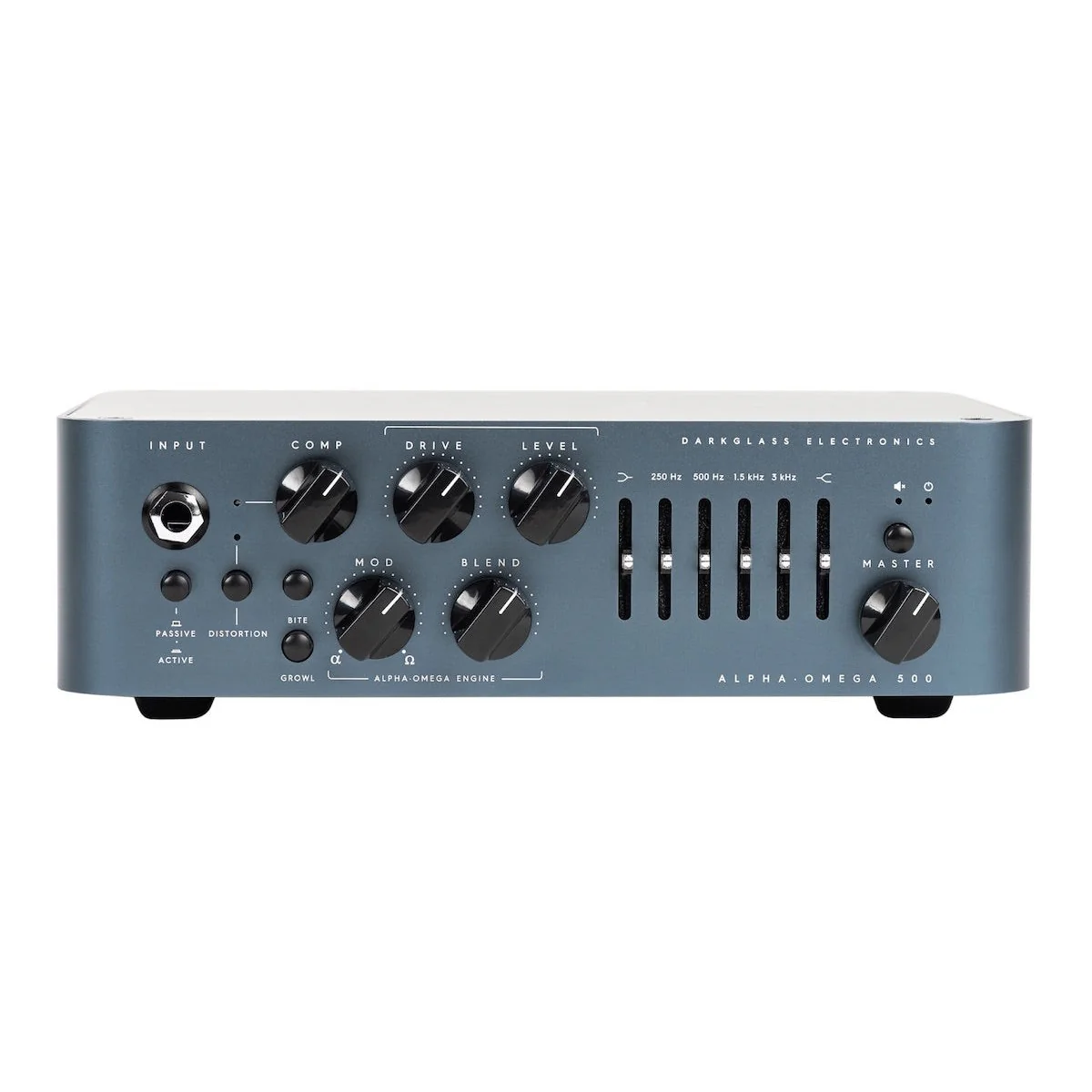

Front Panel Features
Input
Use this jack to connect your instrument via a standard ¼” mono cable.
Passive/Active
Use this push-button switch to change from passive to active mode. If your bass is active it can have a hotter signal making the amp to distort early (feel free to use if such additional distortion is desired).
Distortion
Use this push button to turn on or off the Alpha·Omega Engine™ to add natural compression, organic harmonic enhancement, and saturation ranging from mild overdrive to high gain bass rage. The Alpha·Omega Engine operates before the clean section (you can therefore use the 6-Band Active EQ for additional tone shaping).
Bite
Boosts high mids (2.8kHz) for additional presence and definition.
Growl
Shelving Bass Boost for a fatter tone and increased low end saturation.
Compression
This knob controls the amount of dynamic compression added to the Alpha·Omega Engine. The make up gain is adjusted automatically. The compression can be turned off or assigned using the Darkglass Suite.
Drive
This knob controls the amount of distortion that the Alpha·Omega Engine will deliver. It will change from a soft, warm overdrive to a massive and modern distortion sound.
Level
Use this knob to control Alpha·Omega Engine’s output volume.
Blend
Use this knob to mix between the Clean signal and the DIstortion signal (Alpha·Omega Engine).
Mod
Selects or mixes between the two distinct distortion circuits: Alpha is punchy, tight with a lot of definition, whereas Omega is simply brutal and raw.
Bass
+-12dB at 80Hz. Use this knob to change the low-end content of the signal.
Mids
+-12dB at 250, 500, 1.5K and 3Khz. This graphic EQ control the mid content of the signal.
Treble
+-12dB at 5kHz. Use this knob to change the high content of the signal.
Master
Use this knob to control the overall volume of the amplifier.
Mute
Use this push button to mute the amplifier.
