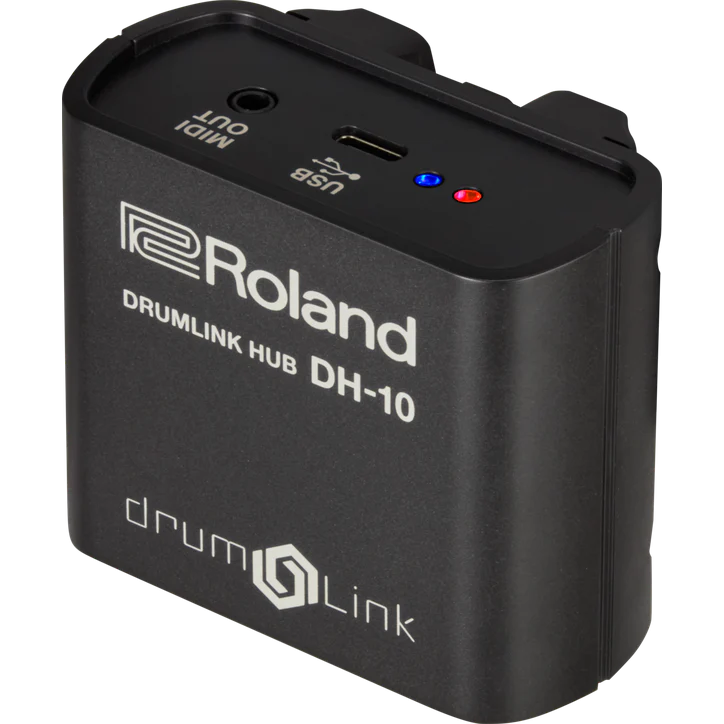

Roland - DrumLink Hub - DH-10

Compact Receiver for Roland WT-10 Wireless Trigger Adapters:
- The advanced DrumLink system brings wireless trigger support to V-Drums and other Roland drumming gear. The compact DH-10 DrumLink Hub captures trigger signals from multiple WT-10 Wireless Trigger Adapter units and sends them to a V71, TD-50X, or TD-27 V-Drums sound module, SPD-SX PRO Sampling Pad, or a computer.

Features:
- Wireless receiver for the Roland DrumLink system
- Compatible with the V71, TD-50X, and TD-27 V-Drums sound modules and SPD-SX PRO Sampling Pad
- Receives trigger signals from multiple WT-10 Wireless Trigger Adapter units
- Connects to the V-Drums module or a computer via USB-C or MIDI

Specs:

Specifications

Wireless Format
Proprietary Protocol
Wireless Carrier Frequency
2.4-2.485 GHz ISM Band
Transmission Range
10 m (32 feet) line-of-sight
* May vary due to local conditions
Connectors
USB Port: USB Type-C(R)
MIDI OUT connector: TRS mini type
Power Supply
Supplied from via USB
Accessories
Clamp, USB Type-C(R) cable (0.5 m / 19 inches), Type-C(R) to A adaptor, Owner's Manual, Leaflet "USING THE UNIT SAFELY"

Size and Weight (Body)

Width
70 mm
2-13/16 inches
Depth
45 mm
1-13/16 inches
Height
58 mm
2-5/16 inches
Weight
65 g / 3 oz

Size and Weight (Includes horizontal clamp)

Width
84 mm
3-5/16 inches
Depth
88 mm
3-1/2 inches
Height
58 mm
2-5/16 inches
Weight
120 g / 5 oz

Clamp Mountable Diameter Size

Clamp Mountable Diameter Size
Φ4.5–32 mm
Φ3/16–1-5/16 inches
